Small Hydraulic Excavator
>
|
|
| Place of Origin | Shandong China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA ，EURO5 |
| Model Number | HT35 |

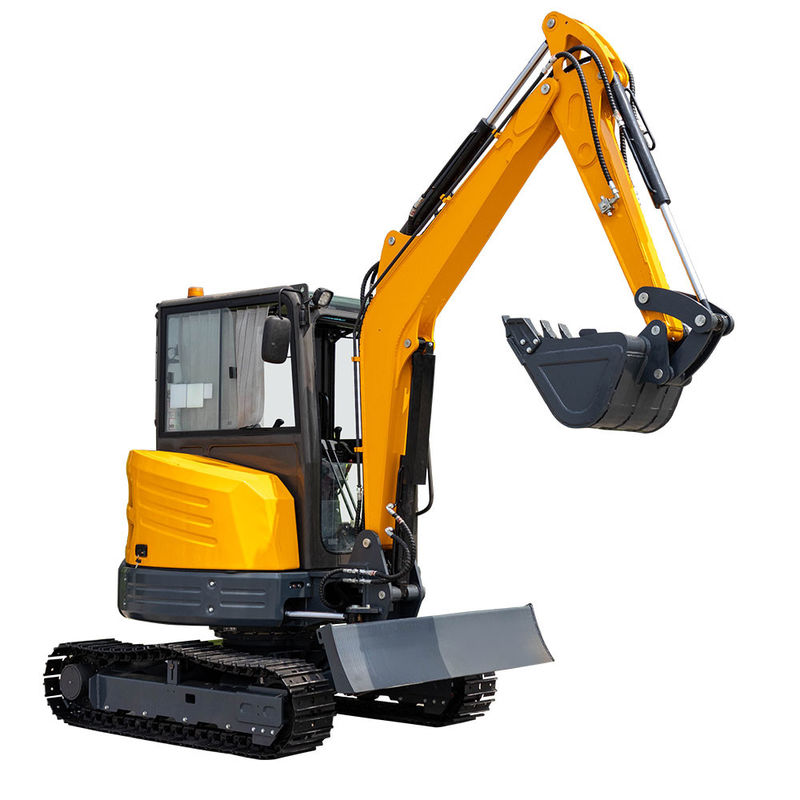

The HighTop Mini Excavator is EPA compliant, meeting the highest standards for emission control and fuel efficiency. This eco-friendly and cost-effective solution is ideal for construction, landscaping, and excavation projects. Designed to minimize fuel consumption and reduce emissions, it offers a sustainable option for various applications.
With a transportation length of 5029mm, the excavator is easy to transport and maneuver on job sites. Its tail turning radius of 885mm allows operation in tight spaces, while the standard track shoe width of 300mm and track ground length of 1645mm enable navigation through rough terrain.
| Parameter | Value |
|---|---|
| Total length/transportation length (A) | 5029mm |
| Total width (B) | 1720mm |
| Upper width (D) | 1554mm |
| Total height (shed roof/cab roof) (C) | 2580mm |
| Standard track shoe width (F) | 300mm |
| Minimum ground clearance (H) | 319mm |
| Tail turning radius (l) | 885mm |
| Track ground length (J) | 1645mm |
| Track length (K) | 2150mm |
| Bulldozer Ground height (R) | 393mm |
| Bulldozer digging depth (T) | 461mm |
| Maximum digging height (a) | 4938mm |
| Maximum unloading height (b) | 3376mm |
| Maximum digging depth (c) | 3106mm |
| Maximum digging distance (d) | 5175mm |
| Minimum radius of turn (e) | 2634mm |
| Max. Height @ Min. Rotation Radius (f) | 3716mm |
| Operating weight | 3500kg |
| Bucket capacity | 0.12m³ |
| Rated power | 18.5KW/2200rpm |
| Turning speed | 9r/min |
| Climbing ability | 58% |
| Bucket digging force | 30.4KN |
| Bucket rod digging force | 18.2KN |
This versatile mini hydraulic excavator is suitable for various applications:
Customize your 1.3ton mini excavator to meet specific requirements:
Contact us today to discuss your customization needs!
Our expert team ensures your HighTop Mini Excavator operates smoothly and efficiently.
