HTSC5.0 5T Lifting Capacity Spider Crane Continuous Rotation With 17m Maximum Lift

Name: HTSC5.0 5T Lifting Capacity Spider Crane Continuous Rotation With 17m Maximum Lift
Brand: Shandong Hightop Group
SKU: HTSC5.0
Price: Negotiable USD
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HTSC5.0

Product Details

Model:

HTSC5.0

Norm:

Maximum Operating Radius:

15m

Maximum Above Ground Lift:

17m

Boom Form:

4m X 5-section Boom (customizable)

Boom Length/time:

4.5m-17m/54sec （adjustable）

Boom Angle/time:

0-78°/13sec

Rotation Angle/speed:

0-360° (continuous)/38sec

Highlight:

5T Lifting Capacity Spider Crane

17m Maximum Lift Crawler Crane

360° Continuous Rotation Mini Hydraulic Crane

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

100 set per month

Product Description

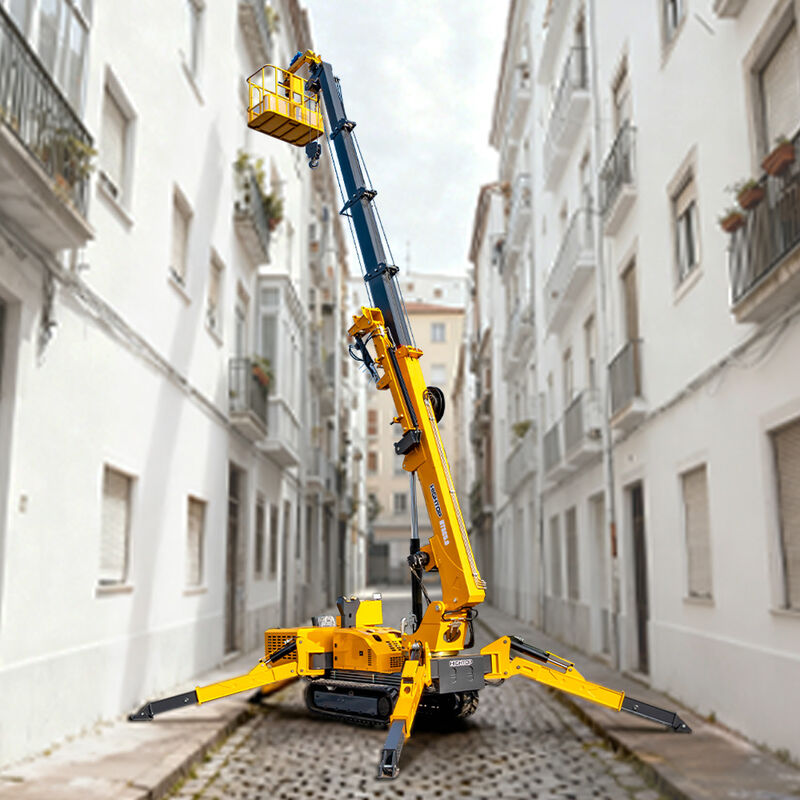

HTSC5.0 5 Tons Crawler Spider Crane

The HTSC5.0 is a compact 5-ton crawler-mounted spider crane, featuring a mini hydraulic telescopic boom lifting system. Its name derives from the four multi-stage hydraulic outriggers that extend like spider legs. The rubber crawler chassis enables navigation through narrow passages, elevators, indoor workshops, and rooftops where conventional cranes cannot operate. This model supports dual-power operation (diesel engine + 380V electric motor), wireless remote control, and full-range 360° continuous slewing, making it ideal for confined-space hoisting applications.

Key Specifications

Parameter	Specification
Capacity	5 Tons
Maximum Operating Radius	15m
Maximum Above Ground Lift	17m
Boom Configuration	4m x 5-section boom (customizable)
Boom Extension Time	4.5m-17m / 54 seconds (adjustable)
Boom Luffing	0-78° / 13 seconds
Slewing	0-360° continuous / 38 seconds
Outrigger Extension	5800mm (length) * 4900mm (rear) * 5600mm (front)
Travel Speed	0-2.5 km/h
Gradeability	25° (36%)
Vehicle Dimensions	Length 4.7m * Width 1.5m * Height 2.25m
Self-weight	6.7 Tons

Winch System

Hook Rising Speed	12 m/min (4 ropes) Two-speed
Wire Rope Specifications	Φ11mm * 60m

Power System

Engine Manufacturer	Yuchai (customizable) 58kw
Model Number	490CC
Start Mode	Electric Start
Operating Temperature Range	-50°C to 45°C
Fuel Capacity	Diesel / 35L
Battery Capacity	24V 45AH
Emission Standard	National Phase II

Operation & Control

Standard operation includes manual control for boom, outrigger, and travel functions. Optional remote control operation available for enhanced convenience and safety.

Optional Features
