HTSC8.0 Crawler Spider Crane with 360° Continuous Rotation 21m Maximum Lift

Name: HTSC8.0 Crawler Spider Crane with 360° Continuous Rotation 21m Maximum Lift
Brand: Shandong Hightop Group
SKU: HTSC8.0
Price: Negotiable USD
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HTSC8.0

Product Details

Model:

HTSC8.0

Norm:

Maximum Operating Radius:

18m

Maximum Above Ground Lift:

21m

Wire Rope Specifications:

Φ12mm×80m

Boom Form:

5m X 5-section Boom (customizable)

Boom Angle/time:

0-78°/13sec

Rotation Angle/speed:

0-360° (continuous)/38sec

Highlight:

360° continuous rotation HTSC8.0 crawler spider crane

21m maximum above ground lift Hightop Mini Excavator

Wireless remote control operations 8-ton micro tracked crane

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

100 set per month

Product Description

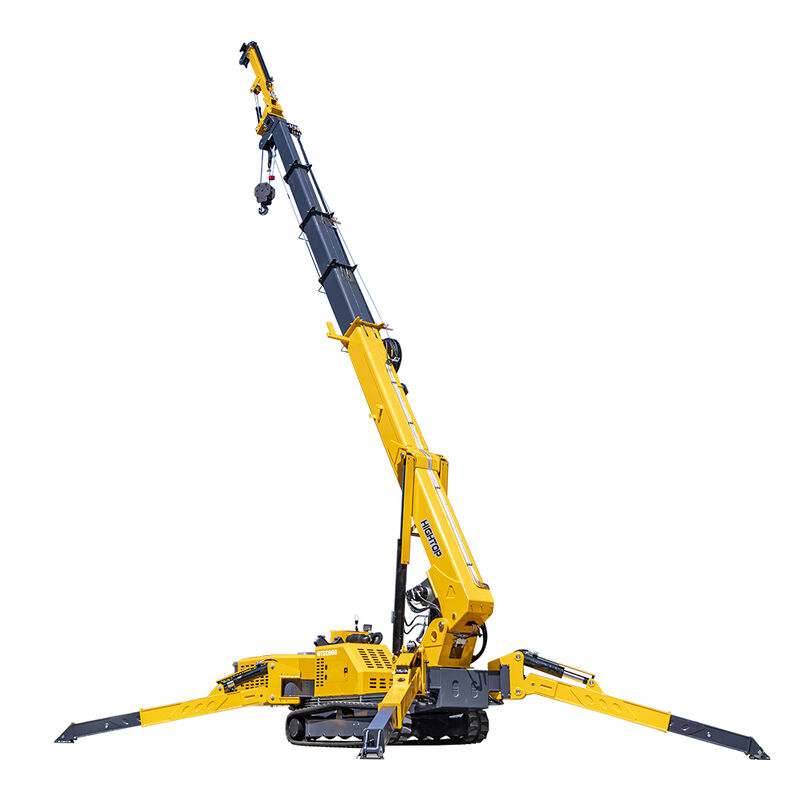

HTSC8.0 Crawler Spider Crane

The HTSC8.0 tracked spider crane is an 8-ton micro tracked crane produced by Hightop. It features a rubber tracked movement system with expandable hydraulic legs in a spider structure. The compact body is equipped with both diesel and electric power options, supports 360° continuous rotation, and offers wireless remote control operations. With a maximum lifting height of 17.5 meters, it can access indoor spaces, narrow corridors, basements, and other areas traditional cranes cannot reach. Safety features include torque limit and overload protection systems.

Key Applications

Curtain wall installation
Factory equipment hoisting
Steel structure construction
Maintenance and repair in restricted spaces

Technical Specifications

Parameter	Specification
Capacity	8 tons
Maximum Operating Radius	18 meters
Maximum Above Ground Lift	21 meters
Hook Rising Speed (4 ropes)	12 m/min (Two-speed)
Wire Rope Specifications	Φ12mm × 80m
Boom Configuration	5m × 5-section boom (customizable)
Boom Length/Extension Time	5.5m-21m / 54 seconds (adjustable)
Boom Angle/Luffing Time	0-78° / 13 seconds
Rotation Angle/Speed	0-360° continuous / 38 seconds
Outrigger System	Manual screw-out + cylinder support (two-section leg)
Maximum Extension Amplitude	7000mm (length) × 5070mm (rear) × 6700mm (front)
Walking Mode	Hydraulic drive with high and low speed
Walking Speed	0-2.5 km/h
Gradeability	25° (36%)
Track Specifications	350mm (width) × 52.5mm (pitch) × 104 (section)
Engine Manufacturer	Yuchai (customizable) 58kw
Model Number	490CC
Start Mode	Electric start
Operating Temperature Range	-50°C to 45°C
Fuel Type/Capacity	Diesel / 35L
Battery Capacity	24V 45AH
Emission Standard	National Phase II
Operation Type	Manual operation, manual travel (remote control operation optional)
Vehicle Dimensions	Length 6.15m × Width 1.6m × Height 2.25m
Self-weight	8.7 tons
