Mini Crawler Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT25 |

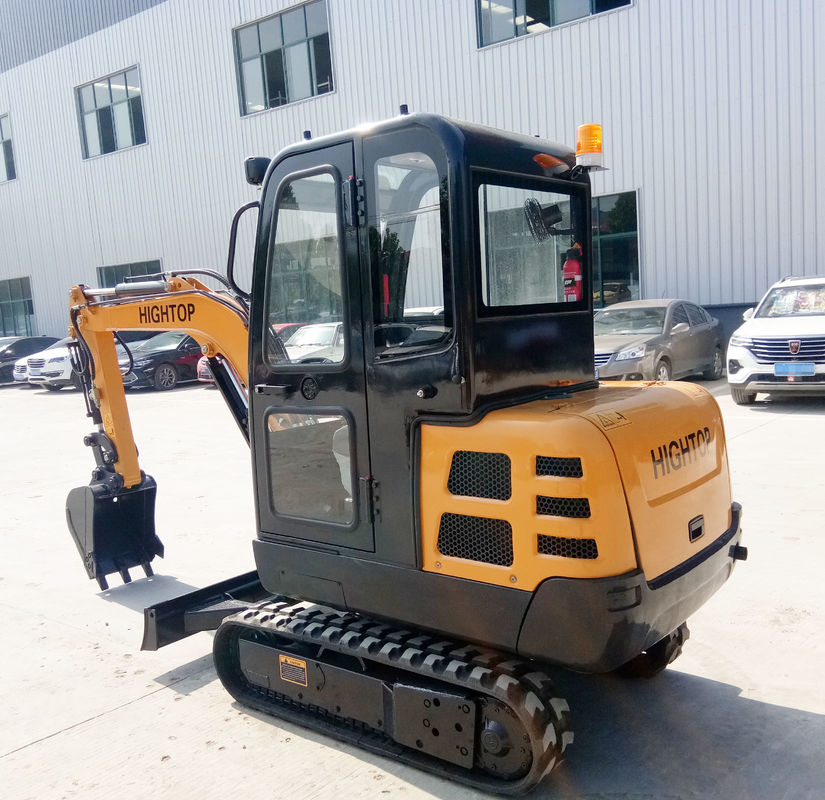

2.5T Tailless Rotation Mini Crawler Excavator Retractable Shoes Mini Digger
HT25 Mini Hydraulic Excavator Description:
The HTt25 mini crawler excavator is a compact excavator, which matched Japanese import brand engine , the boom of excavator can swing to left or right , suitable for different director digging for your working .
HT25 Mini Hydraulic Excavator Features:
HT25 mini excavator fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system.
The 22.1 kW engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful hammer.
Mini Hydraulic Excavator Technical parameters:
| Machine Size | |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Min.Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| Track System | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| Performance Parameter | |
| Standard bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Max. Grade ability | 30° |
| Max. Bucket digging force | 15.3KN |
| Max. Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2500kg |
| Arm length | 1000mm |
| Engine | |
| Emission Standard | Euro5/ EPA |
| Engine Model | KUOBTA |
| Power/Rotation speed | 14.1kw(20HP)2000rpm |
| Optional Engine | China Laidong 22.1kw,2300rpm |
| Number of cylinder | 3 |
| Working Range | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2290mm |
| Max. Digging depth | 2450mm |
| Max. Vertical digging depth | 2160mm |
| Max. Digging radius | 4370mm |
| Min .swing radius | 2020mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 310mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Applications:
Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.
HT25 Mini Hydraulic Excavator Show Details:
