400volt 3 Phase Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500
  • 400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500
  • 400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500
  • 400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500
  • 400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500

400volt 3 Phase Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number CNMC-500
Product Details
Power Source:
230v 3 Phase ,400v 3 Phase ,50/60HZ
Whole Power:
17KW
Heater Power:
6kw Each Side
Heating Hose Power:
1000w/15meter
Air Source:
0.5-0.8MPa≥0.25m³
Warranty:
1 Year
High Light:

400volt Hydraulic Polyurea Spray Machine

,

400volt polyurea coating equipment

,

3 Phase Polyurea Spray Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

CNMC-500 Hydraulic Polyurea Spray Machine Coating Manufacturers



Description of Hydraulic Polyurea Spray Machine



1. Work efficiency can reach 60% or more,far greater than the 20% efficiency of the pneumatic machine.
2.Hydraulic drive, less troubles
3.Working pressure up to 25MPA, and very stable, large displacement per minute up to24kg.



Features of Hydraulic Polyurea Spray Machine

1. Work efficiency can reach 60% or more,far greater than the 20% efficiency of the pneumatic machine.
2.Hydraulic drive, less troubles
3.Working pressure up to 25MPA, and very stable, large displacement per minute up to24kg.



Technical parameters of Hydraulic Polyurea Spray Machine



Power source: 230v 3 phase ,400v 3 phase ,50/60HZ
Whole power:17KW
Heater power:6kw each side
Heating hose power:1000w/15meters
Driven mode:Hydraulic
Air source:0.5-0.8MPa≥0.25m³
Chemical output:2-24kg/min
Maximum output pressure:25MPa
A and B chemical output ratio:1:1
Max hose support :120 meters
Machine size :870*700*1150mm



Adhibitions of Hydraulic Polyurea Spray Machine



Widely used in industrial maintenance, tunnels, subways, roadbed waterproofing,foam film and television props production,Pipe anticorrosion, roof waterproof,basement waterproof, wear-resistant lining, external wall insulation, etc.

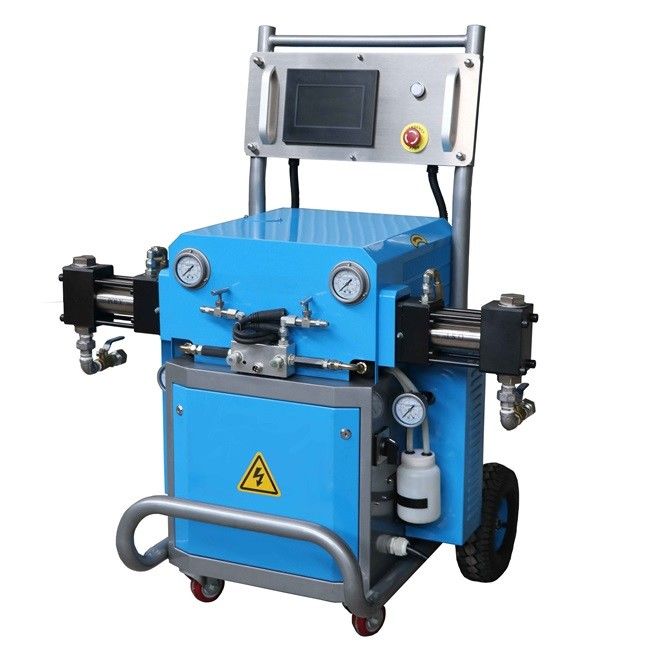

Images of Hydraulic Polyurea Spray Machine









400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500 0400volt 3 Phase  Hydraulic Polyurea Spray Machine Coating Equipment CNMC-500 1
