Powerful 20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700
  • Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700
  • Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700
  • Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700
  • Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700

Powerful 20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number CNMC-H700
Product Details
Product Name:
Hydraulic Polyurea Spray Machine
Whole Power:
20KW
Machine Weight:
310kg
Machine Size:
1160×970×1630mm
Raw Output:
3~10kg/min
Warranty:
1 Year
High Light:

20KW Polyurea Spray Machine

,

20KW Polyurethane Spraying Machine

,

powerful Polyurea Spray Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

CNMC-H700 Hydraulic Polyurea Spray Machine Polyurethane Spray Machine



Description of Hydraulic Polyurea Spray Machine



1.Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil.
2.Hydraulic station works with booster pump, guaranteeing pressure stability for A and B material



Features of Hydraulic Polyurea Spray Machine

3. The main frame is made from welded seamless steel tube with plastic-spray so it is more corrosion resistant and can bear with higher pressure.
4. Equipped with emergency switch system,help operator deal with emergencies rapidly;
5. Reliable & powerful 380V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition



Technical parameters of Hydraulic Polyurea Spray Machine



Power source: 3-phase 4-wires 380V 50Hz
Working power:20KW
Driven mode: hydraulic
Air source: 0.5~0.8 MPa ≥0.5m³/min
Raw output: 3~10kg/min
Maximum output pressure: 30Mpa
AB material output ratio: 1:1
Machine size : 1160×970×1630mm
Machine weight : 310kg



Adhibitions of Hydraulic Polyurea Spray Machine



Widely used in industrial maintenance, tunnels, subways, roadbed waterproofing,foam film and television props production,Pipe anticorrosion, roof waterproof,basement waterproof, wear-resistant lining, external wall insulation, etc.

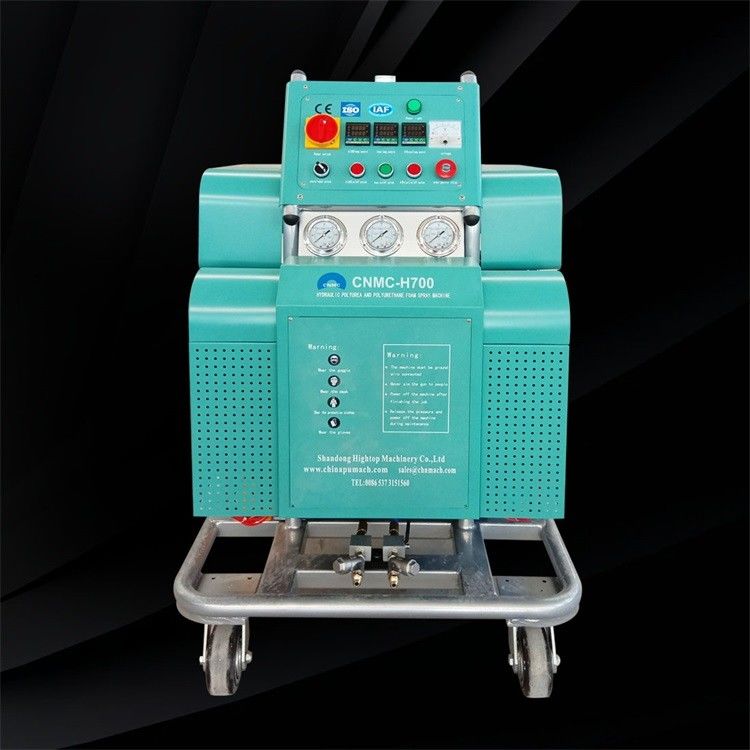

Images of Hydraulic Polyurea Spray Machine



Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700 0



Powerful  20KW Polyurea Spray Machine Polyurethane Spraying Machine CNMC-H700 1
