H700 Hydraulic Polyurea Spray Machine Polyurethane Spray Machine
Description of Hydraulic Polyurea Spray Machine
1. The main frame is made from welded seamless steel tube with plastic-spray so it is more corrosion resistant and can bear with higher pressure.
2. Equipped with emergency switch system,help operator deal with emergencies rapidly;
3. Reliable & powerful 380V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition
Features of Hydraulic Polyurea Spray Machine
4. Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil.
5. Hydraulic station works with booster pump, guaranteeing pressure stability for A and B material
Technical parameters of Hydraulic Polyurea Spray Machine
| Power source: 3-phase 4-wires 380V 50Hz |
| Working power:20KW |
| Driven mode: hydraulic |
| Air source: 0.5~0.8 MPa ≥0.5m³/min |
| Raw output: 3~10kg/min |
| Maximum output pressure: 30Mpa |
| AB material output ratio: 1:1 |
| Machine size : 1160×970×1630mm |
| Machine weight : 310kg |
Adhibitions of Hydraulic Polyurea Spray Machine
Widely used in industrial maintenance, tunnels, subways, roadbed waterproofing,foam film and television props production,Pipe anticorrosion, roof waterproof,basement waterproof, wear-resistant lining, external wall insulation, etc.

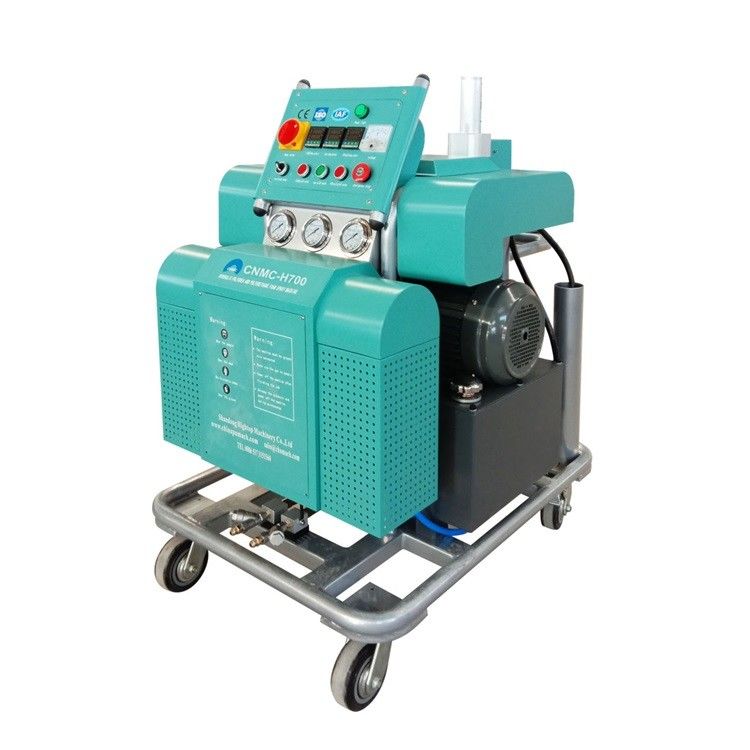

Images of Hydraulic Polyurea Spray Machine
