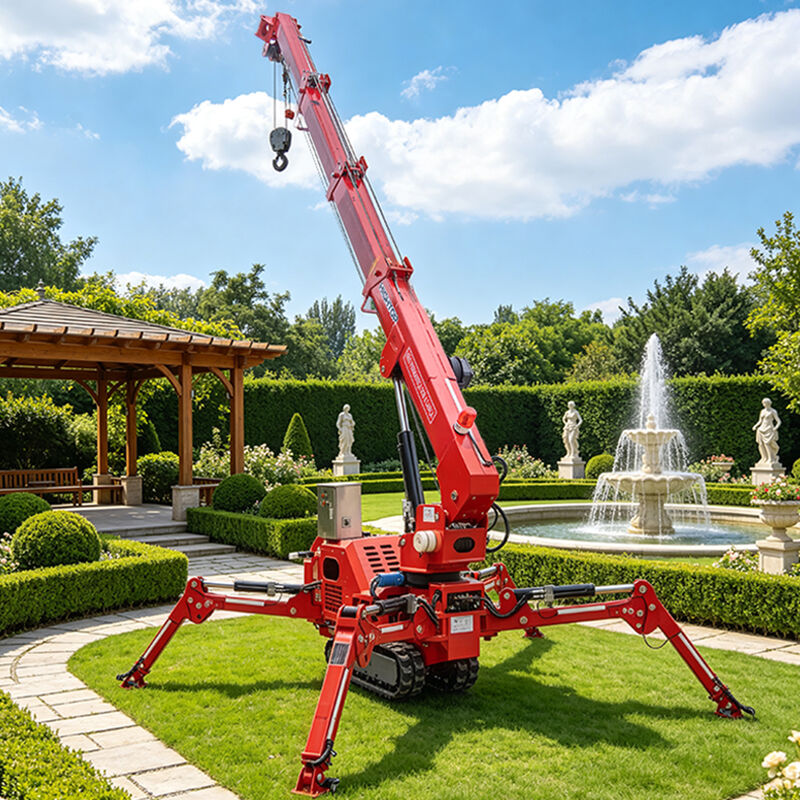

2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HTSC2.0

Product Details

Maximum Operating Radius:

Maximum Above Ground Lift:

6.5m

Hook Rising Speed:

0-8m/min(4 Ropes)

Wire Rope Specifications:

Φ8mm×45m

Boom Form:

2m X 4-section Boom (customizable)

Boom Length/time:

6.5m/20sec （Support Customization）

Boom Angle/time:

0-78°/13sec

Rotation Angle/speed:

0-360° (continuous)/60sec

Highlight:

2 tons spider crawler crane

Rubber tracked chassis spider crawler crane

Remote control Spider Crane

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

L/C,D/P,D/A,T/T

Supply Ability

100 set per month

Product Description

2 Tons Crawler Spider Crane Basic

Product Overview

This compact crawler spider crane features a small size, light weight, and compact structure, making it ideal for confined spaces such as floor roof lifting and substation maintenance.

Rubber tracked chassis prevents ground damage and adapts to various surfaces
High-strength manganese steel boom for superior lifting capacity
Optional remote control for convenient operation

Technical Specifications

Parameter	Specification
Capacity	2T
Maximum Operating Radius	6m
Maximum Above Ground Lift	6.5m

Winches

Parameter	Specification
Hook Rising Speed (4 ropes)	0-8m/min
Wire Rope Specifications	Φ8mm*45m

Telescopic Boom

Parameter	Specification
Boom Form	2m x 4-section boom (customizable)
Boom Length/Time	6.5m/20sec (Support customization)

Luffing Device

Parameter	Specification
Boom Angle/Time	0-78°/13sec

Cyclotron

Parameter	Specification
Rotation Angle/Speed	0-360° (continuous)/60sec

Outrigger

Parameter	Specification
Forms of Outrigger Movement	Manual screw-out + hydraulic automatic support (three-section legs retractable)
Maximum Extension Amplitude	3620 (length) X3440 (rear) X3470 (front) mm

Running Gear

Parameter	Specification
Walking Mode	Hydraulic drive
Walking Speed	0-2.5km/h
Gradeability	25°(36%)
Track	180 (width) 72 (pitch) 37 (section)

Electrical System

Parameter	Specification
Voltage	AC380V

Engine

Parameter	Specification
Manufacturer	Honda (customizable/optional for other brands)
Model Number	390CC
Start Mode	Electric start/manual
Start Performance	-50°C-45°C
Fuel/Volume	Gasoline/8L
Battery Capacity	12V60AH
Fuel Consumption Rate	274g/kW-h
Noise Level	Rated speed ≤ 81.5dBA (1m)

Operation

Parameter	Specification
Type of Operation (boom/outrigger)	Manual operation, manual travel (optional remote control operation)
Operational Mode	Manual operation (remote operation optional)
