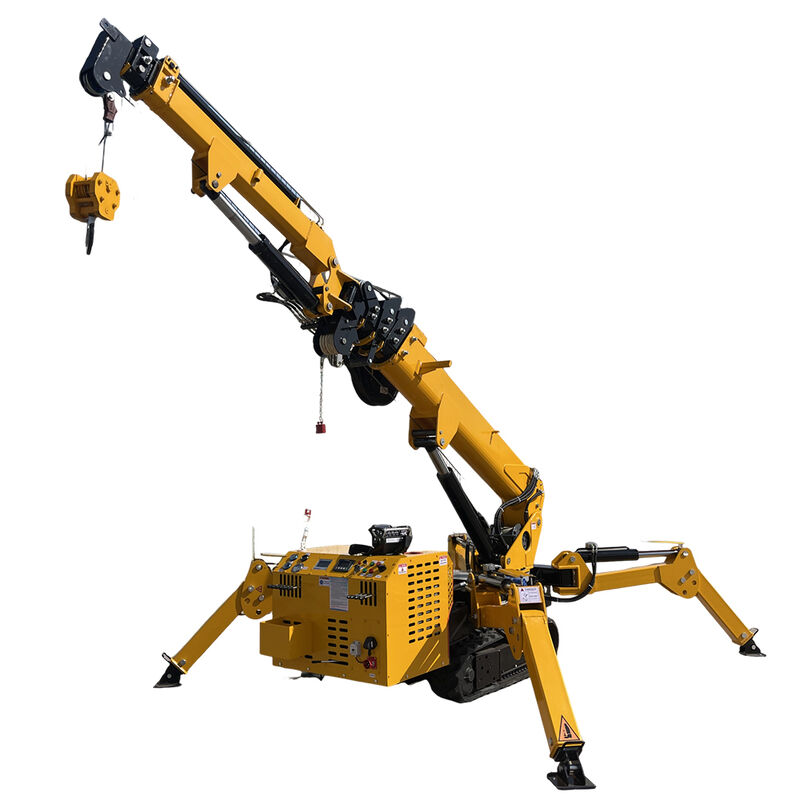

HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius

Name: HTSC300-3 Ton Crawler Spider Crane with 10.5m Max Working Radius
Brand: Shandong Hightop Group
SKU: HTSC300-3
Price: Negotiable USD
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HTSC300-3

Product Details

Specification:

3 Ton

Max Working Radus:

10.5m

Max Ground Ifting Height:

10.8m

Boom Angle/time:

0-78°/13sec

Gyratory Angle/time:

0-360 (continuous) /60sec

Operating Type:

Hydraulic Automatic Support +manual Unscrewing

Travelling Speed:

0-2.5km/h

Track Size:

2420mm

Highlight:

10.5m Crawler Spider Crane

3 Ton Crawler Spider Crane

3 Ton spider crawler crane

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

100 set per month

Product Description

HTSC300-3 Ton Spider Crane

The spider crane offers versatility, maneuverability, and lifting capacity in a compact design that enables you to quickly, safely, and easily meet all of your restricted and confined-area lifting requirements. Each unit is backed by our 18-plus years of industry and application experience, complete inventory of genuine spare parts and accessories, and superior service support.

Technical Specifications

Specification	Details
Capacity	3 ton
Max Working Radius	10.5 m
Max Ground Lifting Height	10.8 m
Winch Device	Hook Speed: 0-8 m/min Rope Type: Φ8mm × 45m
Telescopic Device	Boom Type: Hexagonal fully automatic 5-section Boom Length: 3.1m - 9.2m
Undulating Device	Boom Angle/Time: 0-78°/13 sec
Gyratory Device	Gyratory Angle/Time: 0-360° (continuous)/60 sec
Outrigger	Operating Type: Hydraulic automatic support + manual unscrewing Max Extended Dimensions: 4300 mm × 3700 mm × 4300 mm
Walking System	Travelling Type: Hydraulic motor drive, two-speed (rubber track) Travelling Speed: 0-2.5 km/h Track Size: 2420 mm Gradeability: 25°
Motor	Voltage: AC380V/AC220V/AC110V customizable Electric Motor Model: YYB112M-4 (Three-Phase AC Asynchronous Motor)
Engine	Brand: ChangChai EV80 12KW / Yanmar 3TNV88 18.2KW Starting Method: Electric Start Performance: -5°C to 40°C Fuel/Capacity: Diesel/8L
Operating System	Operating Type: Manual operation, manual walking + remote control
Standard	Diesel engine and electric motor (dual power)
Size	3500 mm × 800 mm × 1850 mm
Weight	2700 kg
