HTS35 Mini Skid Steer Loader Articulated Wheel Loader With CE,EPA Engine
Description of HTS35 Mini Skid Steer Loader :
HTS25 mini skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering.
Features of HTS35 Mini Skid Steer Loader :
1. The main components of the product are highly configured. The main pump adopts the Italian plunger pump, and the walking motor adopts the American White motor. The engine is Zhejiang Xinchai 490.
2. The whole machine has beautiful appearance, compact structure and small volume, which can be used for flexible and flexible operation in narrow places;
Technical parameters of Mini Skid Steer Loader :
| Specifications | |
| Rated operating capacity(kg) | 500 |
| Tipping load(kg) | 1000 |
| Bucket capacity(m3) | 0.3 |
| Operationg weight(kg) | 2200 |
| Max. travel speed(km/h) | 10 |
| Hydraulic pump flow(L/min) | 60 |
| Fuel tank capacity(L) | 60 |
| Tires | 8.5-15 |
| Overall dimensions(mm) | 2950×1350×2000 |
| Dimensions | |
| Height at maximum extension(mm) | 3300 |
| Height to bucket hinge pin(mm) | 2725 |
| Width with bucket(mm) | 1400 |
| Track width(mm) | 1080 |
| Wheelbase(mm) | 897 |
| Ground clearance(mm) | 140 |
| Dump angle | 40° |
| Dumping height(mm) | 2050 |
| Maximum reach(mm) | 790 |
| Angle of departure | 20° |
| Engine | |
| Maker/Model | Xinchai 490 |
| Net power | 37Kw/2500rpm |
| Type | 4Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Applicationsof Mini Skid Steer Loader :
Equipped with hydraulic control, the steering is labor-saving, and the operation is comfortable and convenient.
Can be equipped with a variety of attachments to achieve a multi-function, multi-purpose machine

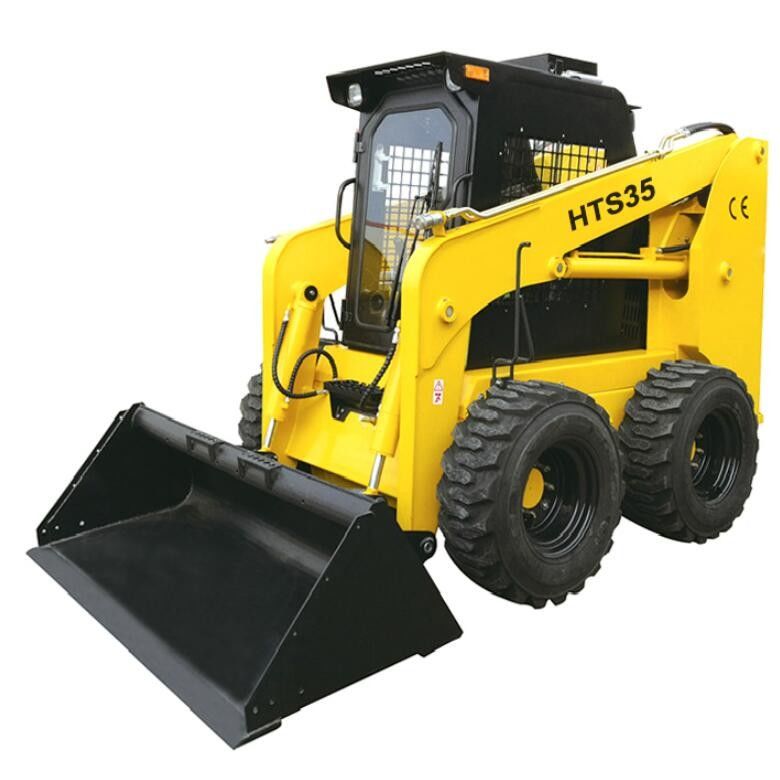

Images of Mini Skid Steer Loader :
