Mini Skid Steer Loader
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HTS75 |
HTS75 Hydraulic Mini Skid Steer Loader With Bucket Grapple Attachment
Description of HTS75 Mini Skid Steer Loader :
The HTS75 skid-steer loader is designed to help you accomplish more with one machine. This 75-hp, vertical-lift-path skid-steer loader delivers powerful breakout forces.
Features of HTS75 Mini Skid Steer Loader :
Adopt Japanese engine, Italian main pump,White motor, Italian multi-way valve, American Eaton pilot valve;
Equipped with hydraulic control, the steering is labor-saving,Comfortable and convenient to operate.
Technical parameters of Mini Skid Steer Loader :
| Operating load | 1050kg |
| Rated flux | 75L/min |
| Wheel model | 12-16.5 |
| Rated power | China Xinchai 55Kw Euro 5 |
| Fuel tank capacity | 75L |
| Machine Weight | 3500kg |
| Bucket capacity | 0.5 m3 |
| Overall operating height | 4070mm |
| Height to top of cab | 2160mm |
| Dumping height | 2450mm |
| Bucket width | 1880mm |
| Dumping reach | 700mm |
| Tread width | 1500mm |
Applicationsof Mini Skid Steer Loader :
HTS75 mini skid loader widely used in farms,towns construction, engineering construction, hydropower engineering, seaport, mining and other engineering construction and etc.

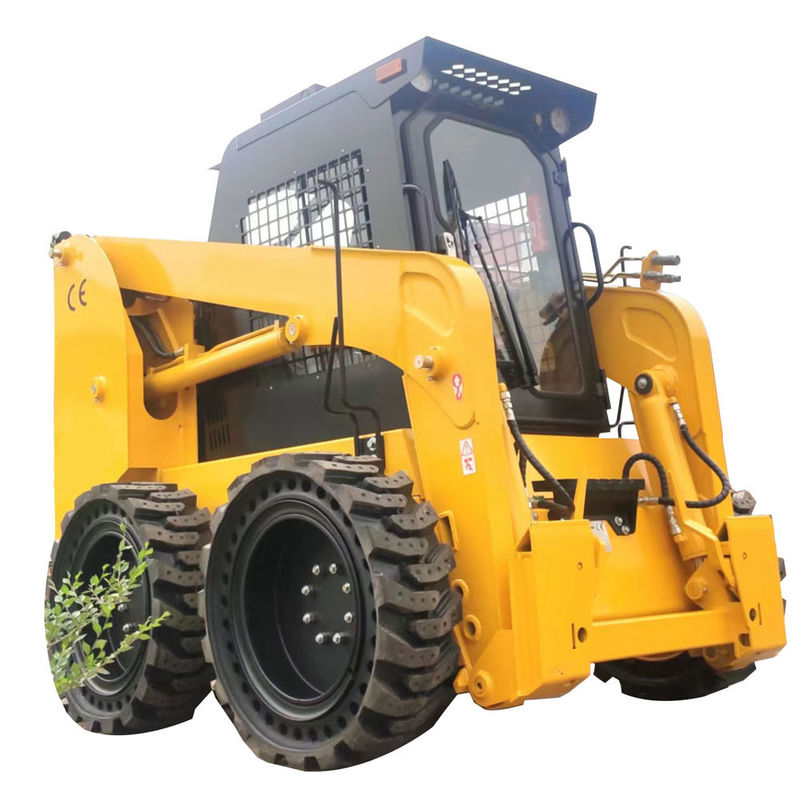

Images of Mini Skid Steer Loader :
