Mini Skid Steer Loader
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HTS60 |
HTS60 Heavy Duty Mini Skid Steer Loader With Brush Grapple Attachment
Description of HTS60 Mini Skid Steer Loader :
The agile HTS60 mini skid steer loader delivers powerful hydraulics for unmatched efficiency on the job.
Features of HTS60 Mini Skid Steer Loader :
HTS60 which can quickly connect several accessories to achieve different jobs,
one machine is multi-purpose, with forklifts, excavators, trenchers, augers,cultivators, sweepers, snow blowers, excavators, drilling machines, crushers have the same functions.
Technical parameters of Mini Skid Steer Loader :
| Operating load (kg) | 850 |
| Max Speed(km/h) | 12 |
| Rated flux (L/min) | 75 |
| High Flow Flux (L/min) | / |
| Tire(track) model | 12-16.5 |
| Rated power (Kw) | 45 |
| Fuel tank capacity (L) | 80 |
| self weight bucket (kg) | 2800 |
| Bucket capacity (m³) | 0.4 |
| Overall operating height (mm) | 4000 |
| Height to bucket hinge pin (mm) | 3100 |
| Hheight to top of cab (mm) | 2160 |
| Height to bottom of level bucket(mm) | 2933 |
| Without bucket length(mm) | 2750 |
| Overall length with bucket(mm) | 3490 |
| Dumping angle at maximum height(° ) | 40 |
| Dumping height(mm) | 2400 |
| Dumping reach(mm) | 750 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 991 |
| Ground clearance(mm) | 205 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1198 |
| Front tuning radius(mm) | 1958 |
| Rear tuning radius(mm) | 1728 |
| Rear axle to bumper (mm) | 1208 |
| Tread width (mm) | 1500 |
| Width (mm) | 1880 |
| Bucket width (mm) | 1880 |
Applicationsof Mini Skid Steer Loader :
HTS60 mini skid loader widely used in farms,towns construction, engineering construction, hydropower engineering, seaport, mining and other engineering construction and etc.

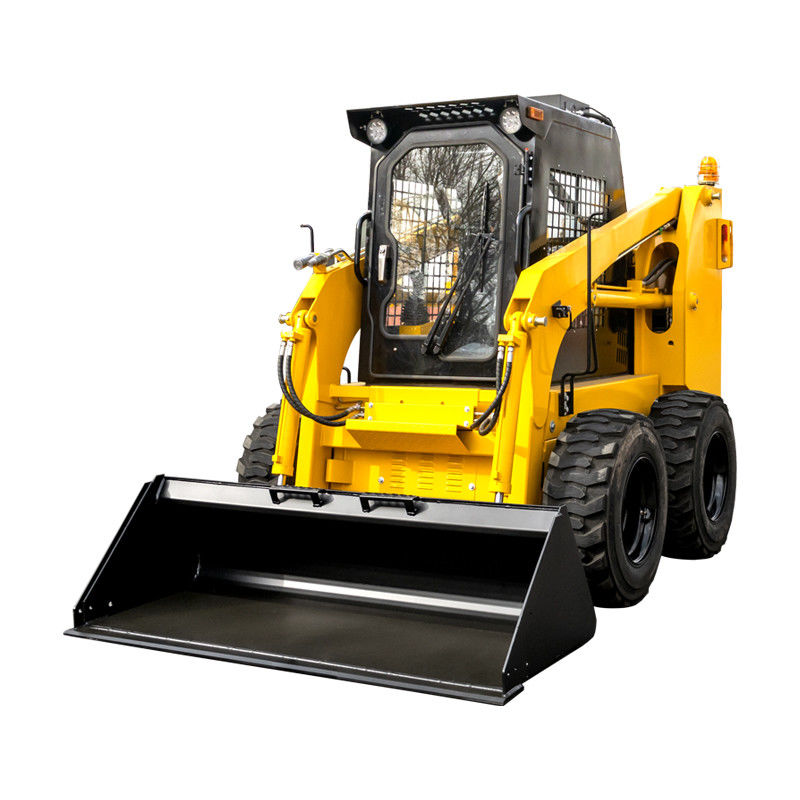

Images of Mini Skid Steer Loader :
