Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor
  • Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor
  • Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor
  • Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor
  • Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor
  • Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor

Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number CNMC-H800
Product Details
Product Name:
Polyurea Spray Machine
Machine Power:
18kw In Total
Max Pressure:
25MPA
Power Source:
380V 50/60HZ
Net Weight:
200kg
Warranty:
1 Year
High Light:

Closed Cell Spray Foam Insulation Machine

,

Hydraulic Driven Spray Foam Insulation Machine

,

Closed Cell spray foam insulation equipment

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

Polyurea Spray Machine Coating Reactor Hydraulic Driven Closed Cell Spray Foam Insulation Machines



Description of Hydraulic Polyurea Spray Machine



PLC liquid crystal display,showing working status from time to time.

The static andd ynamic pressure difference is slight,the hydraulic station and the raw material pressure are designed with1:1,the pressure is stable,and the raw material output is large flow.

The booster pump is horizontally pressurized,booster faster and stable.



Features of Hydraulic Polyurea Spray Machine



1. Work efficiency can reach 60% or more, far greater than the 20% efficiency of the pneumatic machine.

2.Hydraulic drive, less troubles.

3.Working pressure up to 25MPA, and very stable, large displacement per minute up to 24kg.

4.Machine soft start,The booster pump is equipped with an overpressure valve. When the pressure exceeds the set pressure, it will automatically release pressure and protect the machine.
5.Electrical components, testing components ,Seals, all are all made in Germany, pumps made in Japan, solenoid valves made in Italy.
6.Only need 2.2kw air compressor to work together, reducing the overall working load.

7. Equip with 8-inch operating touch screen PLC, convenient to observe the working status of the machine in real time.



Technical parameters of Hydraulic Polyurea Spray Machine



Material use : closed cell and open cell 1:1 ratio,
polyurea waterproof material 1:1
Machine Power :18kw in total
Max pressure :25MPA
Power source :380V 50/60HZ
Air source:no less than 10 cfm,8 bar .
Net weight: 200kg
Machine Size :70*100*130cm .
HS:8477800000
Remark :Standard machine include15 meters heated hose
Max support 120 meters heated hose



Adhibitions of Hydraulic Polyurea Spray Machine



Polyurea Spray Machine can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks,pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance,wear-resistant linings, cold storage insulation, wall insulation and etc.

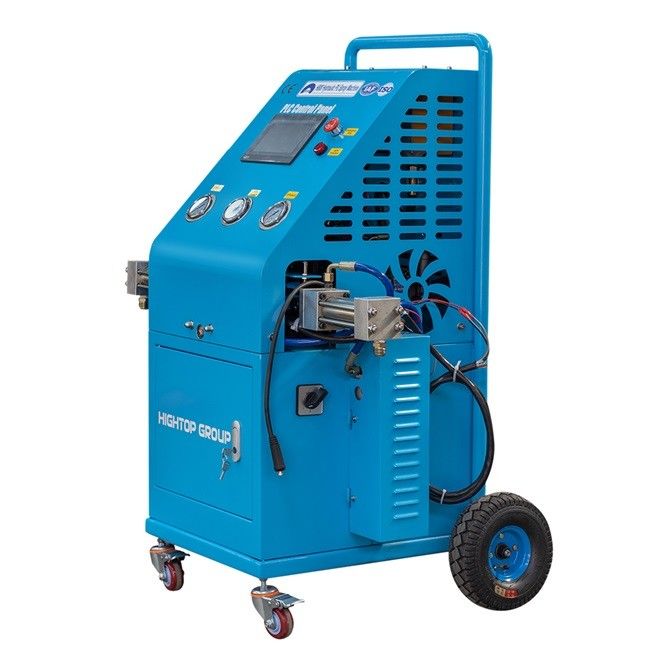

Images of Hydraulic Polyurea Spray Machine



Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor 0



Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor 1
Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor 2


Hydraulic Driven Closed Cell Spray Foam Insulation Machine Coating Reactor 3
