Mini Skid Steer Loader
>
|
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT380 |
China Manufacturer Skid Steer Loader Euro 5 CE EPA Mini Loaders
Description of HT380 Mini Skid Steer Loader :
The skid steer loaders, multi-functional engineering vehicles, multi-purpose engineering machine. Achieved a special chassis vehicle steering wheel equipment, wheel running gear, all-wheel drive, skid steer, random job site can be quickly replaced or mount devices using a variety of work on both sides of the wheel speed difference, to adapt to different working environment and job content.
Ergonomically designed, operating safety
Quick hitch system
Balance weight platform optional
Higher lifting height than similar products
Stand on or walk behind
Double hand grip
Features of HT380 Mini Skid Steer Loader :
1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.
2. Clear instrument panel sign, operating conveniently.
3. Joystick handle optional, operating more comfortable.
4. International warranty engine, enjoy local 3 years free engine maintenance.
5. It is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.
Technical parameters of Mini Skid Steer Loader :
|
Item |
Metric |
Inch |
|
Max working height(A) |
2115 mm |
83.3 inch |
|
Max pin height (B) |
1856 mm |
73.1 inch |
|
Max dump height(C) |
1460 mm |
57.5 inch |
|
The highest point discharge distance(D) |
388 mm |
15.3 inch |
|
Bucket swing angle(β) |
55° |
55° |
|
Bucket unloading angle(γ) |
30° |
30° |
|
Angle of departure(α) |
8° |
8° |
|
Total height (H) |
1205 mm |
47.4 inch |
|
The height from the ground(F) |
90 mm |
3.5 inch |
|
Wheelbase (G) |
636 mm |
25.0 inch |
|
No bucket length(J) |
1752 mm |
69.0 inch |
|
Total width (W) |
1033 mm |
40.7 inch |
|
Bucket width (K) |
980 mm |
38.6 inch |
|
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
|
Turning radius (R) |
1307 mm |
51.5 inch |
Applicationsof Mini Skid Steer Loader :
HT380 which can quickly connect several accessories to achieve different jobs,
one machine is multi-purpose, with forklifts, excavators, trenchers, augers,cultivators, sweepers, snow blowers, excavators, drilling machines, crushers have the same functions.

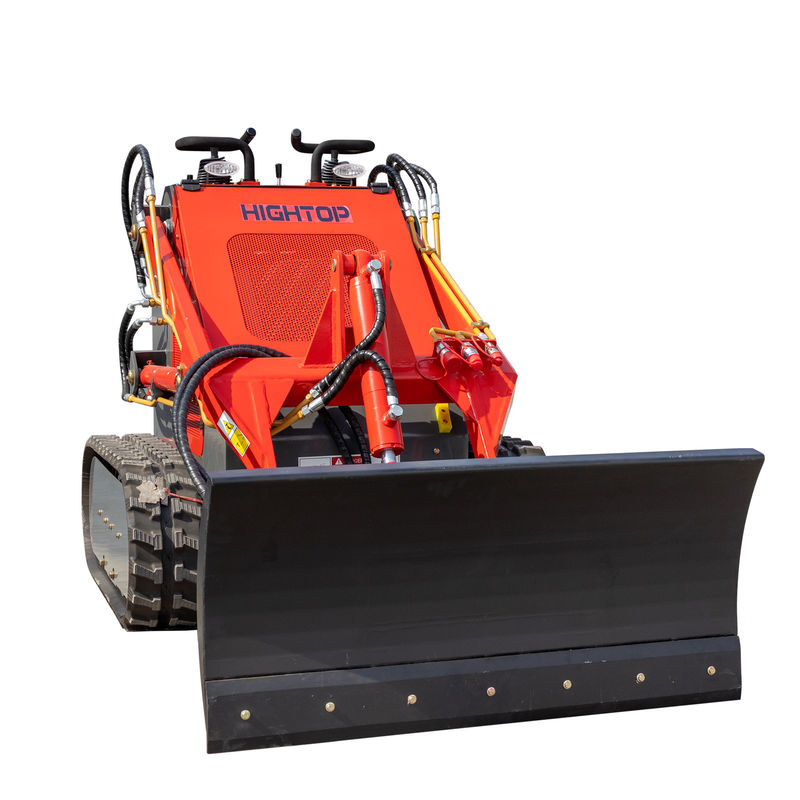

Images of Mini Skid Steer Loader :
