Mini Skid Steer Loader
>
|
| Place of Origin | Shandong China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA， |
| Model Number | HTHY382T |

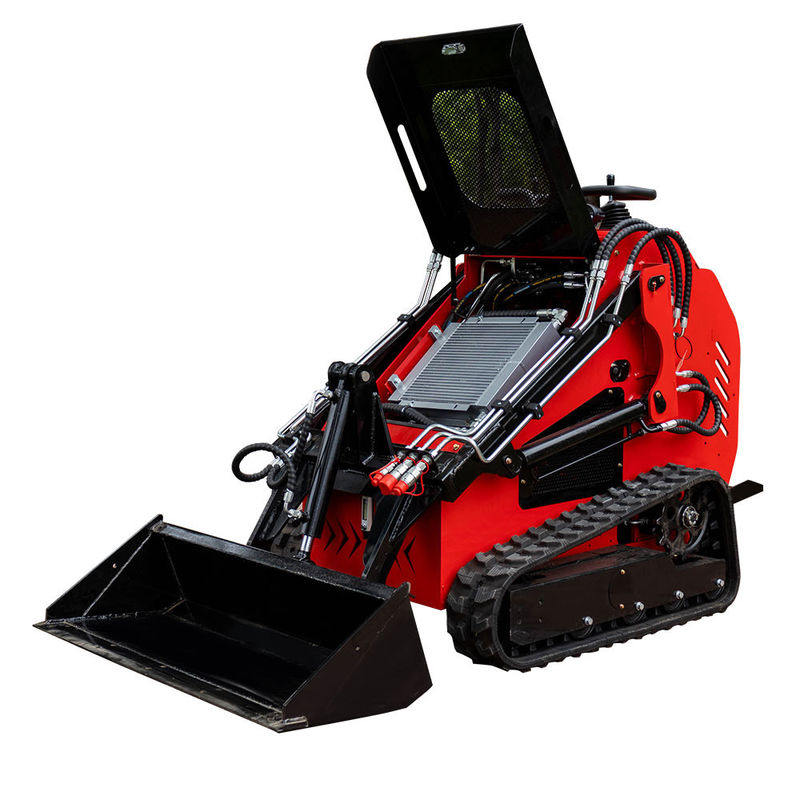

One of the standout features of our Mini Skid Steer Loader is its impressive maximum dumping height of 1390 mm, making it easy to load and unload materials. With a maximum pin height of 1865 mm, you can easily reach high areas and dump materials with ease.
The Mini Skid Steer Loader also boasts a maximum dumping angle of 40°, allowing you to easily dump materials into trucks or other containers. This feature is especially useful in tight spaces where maneuverability is key.
Measuring at a total width of 1025 mm, our Mini Skid Steer Loader is compact enough to fit through narrow doorways and tight spaces. And with an overall length of 1685mm without the bucket after folding the pedal, it's easy to transport to and from job sites.
Whether you need a Wheel Skid Steer Loader or a Crawler Skid Steer Loader, our Mini Skid Steer Loader can meet your needs with its impressive capabilities and features. So why wait? Invest in our Mini Skid Steer Loader today and take your job site to the next level.
Product Details
Multi-function operation panel.
Standard quick-change connector,can be connectecto a variety of attachments
Intelligent throttle control system,Achieve linearcontrol of the throttle.
Upgraded and thickened track, anti-skid anddurable.
PRODUCT ADVANTAGE
SMALL AND FLEXIBLE
Small size, can be in tight Spaces and complexMove and work freely in the environment
STRONG MOBILITY
Be able to move quickly and flexibly toadapt to different work locations
VERSATILITY
Can be equipped with a variety of differenaccessories, to achieve digging, shovelingcleaning, drilling and other functions
HIGH WORKINGEFFICIENCY
Easy to operate, can complete a lot ofwork in a short time
LOW MAINTENANCECOST
The structure is relatively simple, the maintenanceis relatively easy and the cost is not high
WIDE RANGE OFAPPLICATION
Widely used in construction sites, landscapingmunicipal engineering, agriculture and manyother fields
This Mini Skid Steer Loader is a versatile and compact Track Loader that can easily maneuver in tight spaces. With a maximum pin height of 1865mm and a total length with bucket of 2340mm, it can handle a variety of tasks. The R740-1 engine provides reliable power and performance. Whether you're working on a construction site or landscaping a backyard, this Mini Skid Steer Loader is the perfect choice for your needs.
| Max working height | 2105mm |
| Max pin height | 1865 mm |
| Max Dumping height | 1390 mm |
| Max Dumping distance | 600mm |
| Max Dumping Angle | 40° |
| Total height | 1415 mm |
| Ground clearance | 125 mm |
| Wheel base | / |
| Overall length without bucket | 1685 mm |
| Total width | 1025 mm |
| Bucket width | 1150mm |
| Total length with bucket | 2340mm |
| overall length without the bucket after folding the pedal. | 1685mm |
| Engine | R740-1 |
| Rated Power (KW) | 16.5Kw/3600rpm |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-16 |
| Flow rate | 0-40L |
| Operating Load | 300 Kg |
| Bucket Capacity | 0.15m³ |
| Max Lifting Force | 380 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | Kg |
| Oil | |
| Fuel tank | 20L |
| Engine oil | 1.7L |
| Hydraulic tank | 35L |
This Mini Skid Steer Loader is manufactured in Shandong China and is certified by CE and EPA. The minimum order quantity for this product is 1 set, and the price is negotiable. The product is packaged in a wooden case and has a delivery time of 5-14 work days. Payment terms include Western Union, MoneyGram, T/T, D/A, D/P, and L/C. The supply ability for this product is 100 sets per month.
The HIGHTOP Mini Skid Steer Loader is powered by an R740-1 engine and has an overall length of 1685mm without the bucket after folding the pedal. The max dumping height of this machine is 1390mm and the ground clearance is 125mm. The total width of the machine is 1025mm.
There are many occasions and scenarios where the HIGHTOP Mini Skid Steer Loader can be used. It is perfect for landscaping, hardscaping, and construction projects. It can also be used for farming tasks such as moving hay bales and cleaning out barns. This machine is also great for indoor tasks such as warehouse work and cleaning out tight spaces.
The HIGHTOP Mini Skid Steer Loader is a versatile machine that can be used in many different scenarios. It is a great alternative to larger machines such as track loaders and wheel skid steer loaders. This machine is perfect for anyone who needs a compact and powerful machine that can be used in tight spaces.
The HTHY382T Mini Skid Steer Loader is manufactured in Shandong, China and is compliant with CE and EPA regulations. The minimum order quantity is 1 set and the price is negotiable. Packaging is done in wooden cases and delivery time is between 5-14 work days. Payment options include Western Union, MoneyGram, T/T, D/A, D/P, and L/C. The supply ability is 100 sets per month.
The HTHY382T Mini Skid Steer Loader has a wheel base of / and is equipped with a powerful R740-1 engine. It has a maximum dumping angle of 40° and a ground clearance of 125mm. The rated power is 16.5Kw/3600rpm.
The Mini Skid Steer Loader product comes with comprehensive technical support and services to ensure that our customers receive the best performance from their equipment. Our technical support team is always available to answer any questions related to product operation, maintenance, and troubleshooting. Additionally, we offer a range of services including equipment training, parts replacement, and repair services to keep your Mini Skid Steer Loader operating at peak performance. Our goal is to provide our customers with exceptional product support and service to minimize downtime and maximize productivity.
