Powerful HT320T Skid Steer Loader For Heavy Duty Construction Projects

HT320T Skid Steer Loader Instruction

The HT320T skid steer loader is a high-performance, versatile piece of construction equipment designed to cope with complex and changing operating environments. Its outstanding technical parameters and reliable quality make it outstanding in many fields.
Powerful powertrain
The HT320T is equipped with a choice of two high-performance engines, the RATO Engine R420 and the Briggs & Stratton Engine 13.5HP, which provide 9.7Kw/3600rpm and 10Kw/3600rpm power ratings respectively, and are capable of delivering powerful output at 3600rpm, ensuring that the machine is capable of operating in a wide range of conditions. This ensures that the equipment can run stably under all kinds of working conditions, whether it is heavy lifting or tough digging, it can easily cope with the situation.
Excellent working capacity
Working Height and Lifting Performance: With a maximum working height of 2,120mm, a maximum pin height of 1,865mm, and a maximum lifting force of 360kg, the loader can easily lift materials to a higher position to meet the needs of operations such as loading and unloading trucks and delivering materials to high silos.
Unloading parameters: Maximum unloading height of 1405mm, maximum unloading distance of 575mm, maximum unloading angle of 37°, a series of parameters to ensure that the unloading of materials can be accurately and efficiently unloaded to the designated location, improving operational efficiency.
Operating load and bucket capacity: the operating load is 250Kg, the bucket capacity is 0.15m³, and the bucket width is 1080mm, which not only ensures the loading capacity of a single operation, but also flexibly adapts to different sizes of materials and working space.

HT320T Skid Steer Loader Parameter

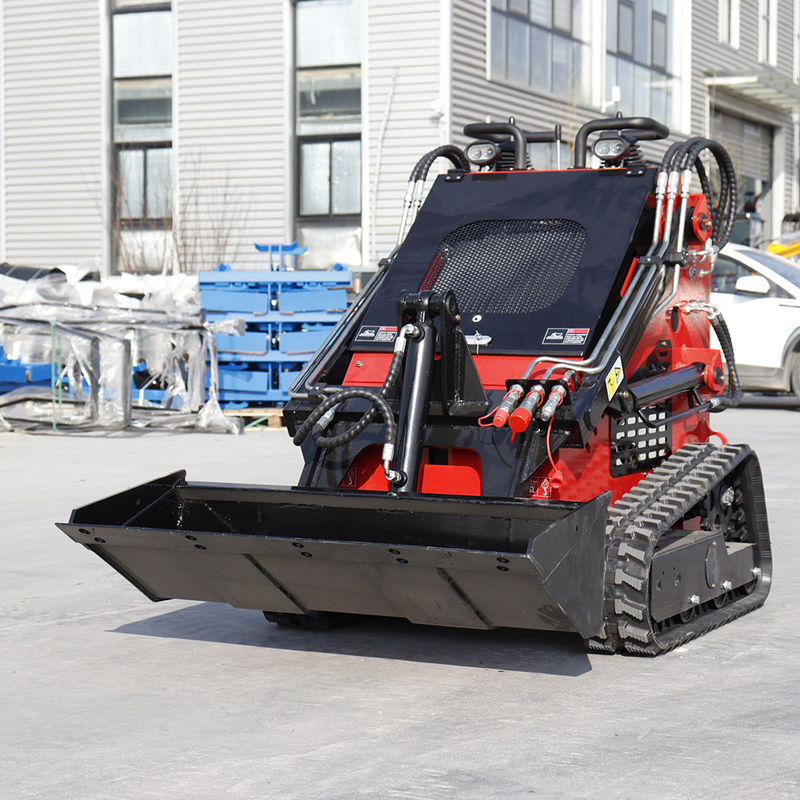

HT320T Skid Steer Loader Images
