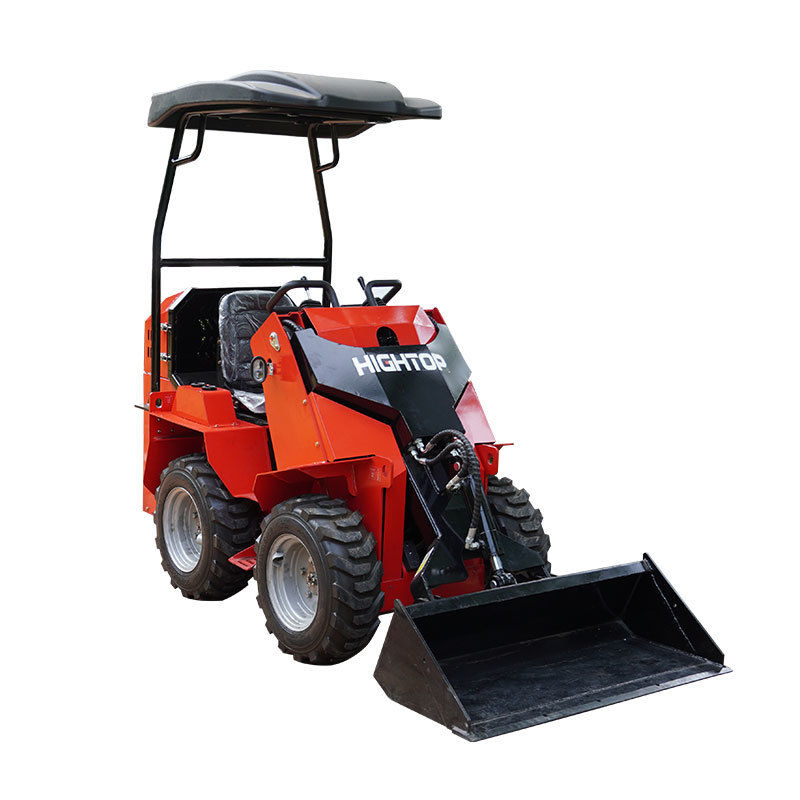

HTSL390 Mini Skid Steer Loader with Max Working Height 2398mm

Name: HTSL390 Mini Skid Steer Loader with Max Working Height 2398mm
Brand: Shandong Hightop Group
SKU: HTSL390
Availability: InStock

Product Details

Max Working Height:

2398mm

Max Pin Height:

1815 Mm

Max Dumping Height:

1430mm

Max Dumping Distance:

366mm

Max Dumping Angle:

Highlight:

compact skid steer loader

mini skid steer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

Western Union,MoneyGram,T/T,D/A,D/P,L/C

Supply Ability

100 set per month

Product Description

HTSL390 Skid Steer Loader

Key Features

Operation Panel: Hydraulic control lever with complete functions and sensitive control arms for easy operation
Hydraulic System: Powerful system providing precise control and enhanced capabilities for maximum productivity
Heavy-Duty Bucket: Strong load-bearing capacity for easy loading and unloading
Wear-Resistant Tires: Anti-slip, wear-resistant design with strong grip and flexible steering

Technical Specifications

Dimension	Value
Max working height	2398mm
Max pin height	1815 mm
Max Dumping height	1430mm
Max Dumping distance	366mm
Max Dumping Angle	23°
Total height	2020mm
Ground clearance	185 mm
Wheel base	815mm
Overall length without bucket	2030mm
Total width	1050mm
Bucket width	1050mm
Total length with bucket	2481mm
Engine	Specification
Engine Model	RATO R420
Rated Power	10Kw/3600rpm
Rotating speed	3600 rpm
Noise Level	≤95 Db
Hydraulic System	Specification
Pressure	0-17 Mpa
Flow rate	0-18L
Operating Load	250KG
Bucket Capacity	0.13m³
Max Lifting Force	200 Kg
Travel Speed	0-4.5Km/h
Operating Weight	850kg
Oil Capacity	Value
Fuel tank	6.5L
Engine oil	1.7L
Hydraulic tank	23L
