HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket
  • HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket
  • HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket
  • HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket
HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket

HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket

Place of Origin China
Brand Name Hightop
Certification CE，EPA，ISO，TUV
Model Number HTS100
Product Details
Product Name:
Skid Steer Loader
Model:
HTS100
Operating Weight（kg）:
1200
Bucket Capacity（m³）:
0.6
Highlight:

mini skid steer loader for sale

,

compact skid steer loader

,

HTS100 mini loader

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union,MoneyGram,T/T,D/A,D/P,L/C
Supply Ability
100 set per month
Product Description
HTS100 Mini Skid Steer Loader
The HTS100 is a versatile engineering work machine designed for multiple work scenarios. With optimized performance parameters and stable power configuration, it delivers reliable performance across various operational environments.
Key Performance Features
  • Operating weight: 4800kg with rated load capacity of 1200kg
  • Bucket capacity: 0.6m³ for efficient material handling
  • Travel speed: 12/18 km/h for quick site transitions
  • Powerful traction: Maximum traction force exceeds 30 kN
  • Digging force: ≥20 kN with 7-second boom lifting time
Engine Specifications
Equipped with a Weichai WP4.1 engine delivering:
  • 74 kW/rpm rated power at 2,200 rpm
  • 4.088 L displacement
  • Compliant with National III emission standards
  • Continuous stable power output for demanding operations
Dimensions & Operational Parameters
Designed for optimal maneuverability and operator comfort:
  • Maximum operating height: 4,800 mm
  • Compact dimensions: 3,000mm length (without bucket)
  • Tight turning radius: 1,365mm (without bucket)
  • Unloading height: 2,450mm with 40° maximum unloading angle
  • Operator visibility: 2,160mm cab height with excellent work area visibility
Technical Specifications
Performance Parameters
Operating weight 4800 kg
Rated load 1200 kg
Bucket capacity 0.6 m³
Max travel speed 12/18 km/h
Max traction force >30 kN
Max digging force ≥20 kN
Boom lifting time 7 seconds
Engine Details
Manufacturer Weichai
Model WP4.1
Rated power 74 kW @ 2200 rpm
Displacement 4.088 L
Emission standard National Standard III
Ideal for municipal engineering, small-scale mining, and agricultural operations, the HTS100 delivers balanced performance and operational reliability.
Product Image

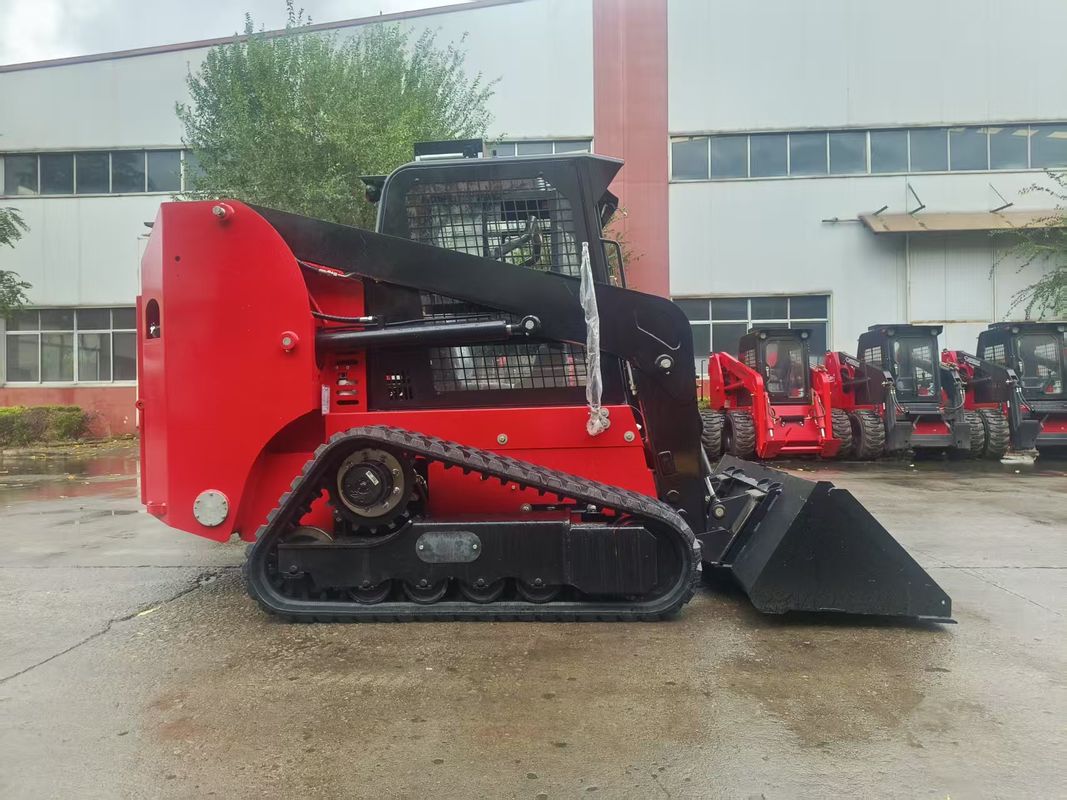

HTS100 Mini Skid Steer Loader 1200kg Capacity 0.6m³ Bucket 0

Tags:

compact skid steer loader,

hydraulic skid steer,

small skid steer loader
