HTS65 Skid Steer Loader with 900kg Rated Load or Construction and Landscaping

Name: HTS65 Skid Steer Loader with 900kg Rated Load or Construction and Landscaping
Brand: Shandong Hightop Group
SKU: HTS65
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HTS65

Product Details

Rated Load:

900kg

Maximum Driving Speed:

12Km/h

Hydraulic Flow:

75L/min

Flow Rate Of High-flow System:

Optional

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden packaging

Delivery Time

5-8 work days

Payment Terms

D/A,L/C,D/P,T/T,Western Union

Supply Ability

100 set per month

Product Description

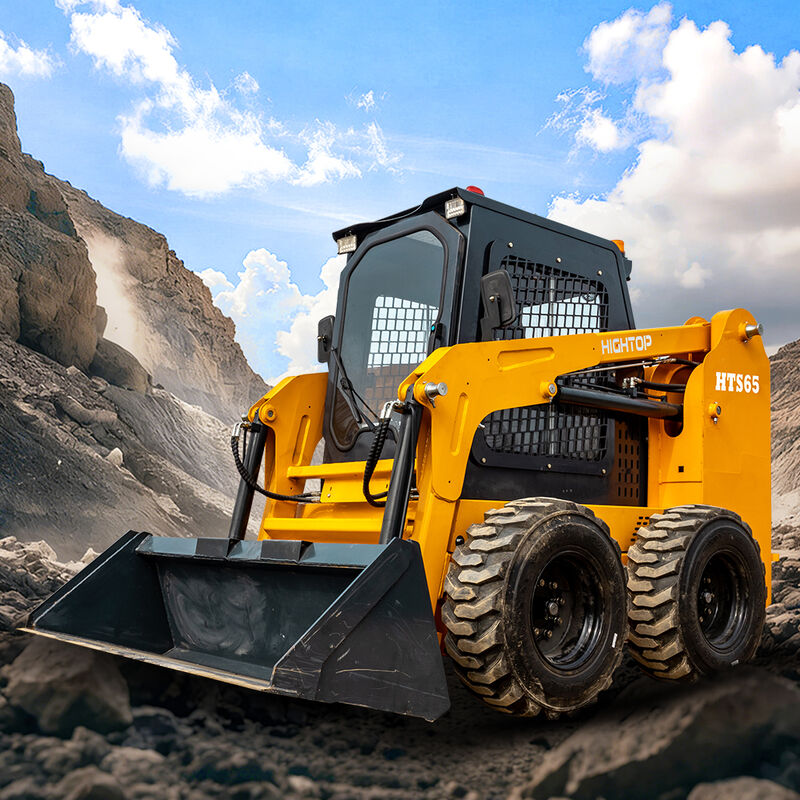

HTS65 Skid Steer Loader

The HTS65 Skid Steer Loader is a compact, high-performance machine powered by a reliable Yanmar 4TNV98C 49.9kW engine. With a 900kg rated load, 0.5m³ bucket capacity, and 12km/h maximum speed, this loader delivers efficient operation for construction, agriculture, landscaping, and municipal projects. Featuring a 75L/min hydraulic system, zero-turn maneuverability, and universal attachment compatibility, it combines durability, safety, and cost-effectiveness for confined-space and rugged-terrain applications.

Technical Specifications

Specification	Value
Rated load	900kg
Maximum driving speed	12Km/h
Hydraulic flow	75L/min
Flow rate of high-flow system	Optional
Tire model	12-16.5
Rated power	4TNV98C 49.9kw (Yanmar 4TNV98C 49.9kw)
Fuel tank capacity	80L
Operating weight	3450kg
Bucket capacity	0.5m³
Overall operating height (mm)	3990
Height to bucket hinge pin (mm)	3090
Height to top of cab (mm)	2140
Without bucket length (mm)	2875
Overall length with bucket (mm)	3570
Dumping angle at maximum height (°)	37
Dumping height (mm)	2370
Dumping reach (mm)	675
Rollback of bucket on ground (°)	30
Rollback of bucket at full height (°)	97
Wheelbase (mm)	1095
Ground clearance (mm)	25
Angle of departure (°)	23
Front turning radius without bucket (mm)	1375
Front turning radius (mm)	2100
Rear turning radius (mm)	1750
Rear axle to bumper (mm)	1140
Tread width (mm)	1575
Width (mm)	1880
Bucket width (mm)	1880
