Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
  • Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer
Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer

Crawler Skid Steer Loader CE EPA Certified Tracked Mini Skid Steer

Place of Origin China
Brand Name Hightop
Certification CE，EPA，ISO，TUV
Model Number HTS-382T
Product Details
Model:
HTS-382T
Max Working Height:
2105mm
Max Loading Height:
1865mm
Dumping Height:
1390mm
Max Dumping Distance:
600mm
Max Dumping Angle:
40°
Total Height:
1415mm
Highlight:

Rubber Tracks Skid Steer Loader

,

Zero-Turn Skid Steering Tracked Mini Skid Steer

,

CE EPA Certified Stand-on Track Loader

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
100 set per month
Product Description
Product Overview

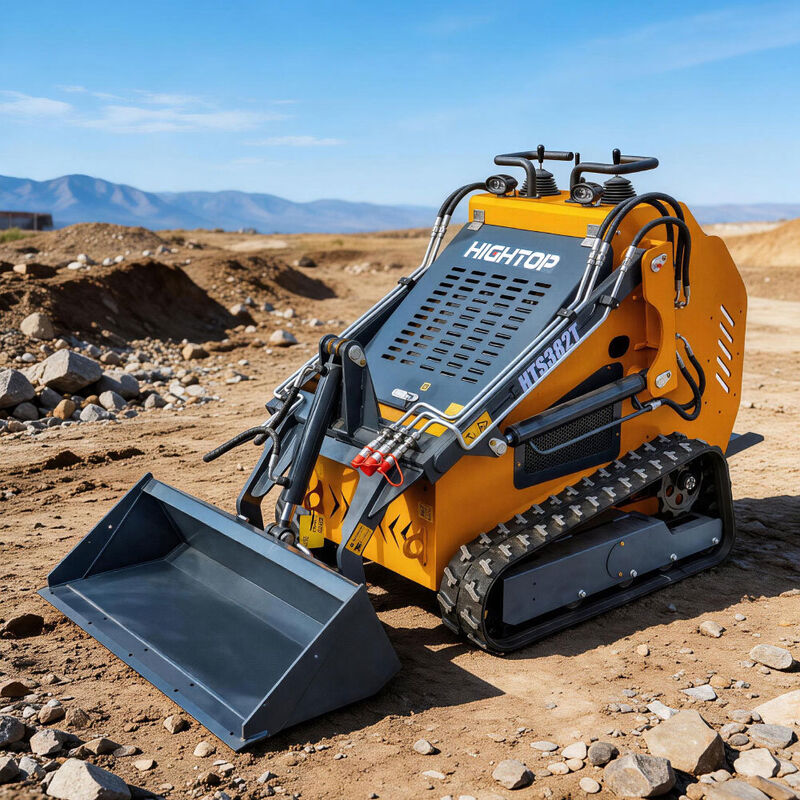

The HIGHTOP HTS382T is a stand-on tracked mini skid steer loader fitted with rubber tracks for superior grip on muddy, sloped and uneven terrain. It features zero-turn skid steering to work easily in narrow spaces. Multiple attachments can be quickly replaced for different jobs. Power options include the KOOP292 diesel engine and the Honda GX690 gasoline engine, with CE and EPA certifications. It is widely used in landscaping, farm work, building renovation and material handling.

Key Features
  • Stand-on tracked design with rubber tracks for reliable traction on muddy, sloped and uneven ground.
  • Zero-turn skid steering for easy maneuvering in confined and narrow workspaces.
  • Quick-change attachment system supports a wide range of job-specific tools.
  • Multiple engine options: KOOP292 diesel and Honda GX690 gasoline, with CE and EPA certifications.
  • Well suited to landscaping, farm work, building renovation and material handling.
Dimensions & Specifications
HTS382T dimensional data
Model HTS382T
Max working height 2105 mm
Max loading height 1865 mm
Dumping height 1390 mm
Max dumping distance 600 mm
Max dumping angle 40°
Total height 1415 mm
Ground clearance 125 mm
Wheel base —
Overall length without bucket 1685 mm
Total width 1025 mm
Bucket width 1150 mm
Total length with bucket 2340 mm
Overall length without bucket (pedal folded) 1685 mm
Engine & Performance Specifications
Comparison across available engine configurations
Parameter RATO R740-1 Briggs & Stratton KOOP292 Honda GX690
Rated power 15 kW (20.1 HP) 17.2 kW (23 HP) 14 kW (18.7 HP) 16.5 kW (22.1 HP)
Rotating speed 3600 rpm 3600 rpm 3000 rpm 3600 rpm
Noise ≤95 dB ≤95 dB ≤95 dB ≤95 dB
Pressure 0–17 MPa 0–17 MPa 0–17 MPa 0–17 MPa
Flow rate 0–43 L 0–43 L 0–36 L 0–43 L
Operating load 300 kg 300 kg 300 kg 300 kg
Bucket capacity 0.15 m³ 0.15 m³ 0.15 m³ 0.15 m³
Max lifting force 300 kg 300 kg 300 kg 300 kg
Travel speed 0–4.5 km/h 0–4.5 km/h 0–4 km/h 0–4.5 km/h
Operating weight 930 kg 930 kg 930 kg 930 kg
Fuel tank 20 L 20 L 10 L 20 L
Engine oil 1.7 L 1.7 L 2.2 L 1.7 L
Hydraulic tank 40 L 40 L 35 L 40 L
Product Gallery
  • HTS382T stand-on crawler skid steer loader, front three-quarter view
  • HTS382T skid steer loader side profile showing rubber tracks
  • HTS382T skid steer loader with bucket raised
  • HTS382T skid steer loader rear view with engine compartment
  • HTS382T skid steer loader operator standing platform detail
  • HTS382T skid steer loader hydraulic arm and bucket close-up
  • HTS382T skid steer loader working on uneven terrain
  • HTS382T skid steer loader with attachment mounted
  • HTS382T skid steer loader control levers and dashboard
  • HTS382T skid steer loader rubber track and undercarriage detail
  • HTS382T skid steer loader in landscaping application
  • HTS382T skid steer loader full unit overview
