Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance
  • Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance
  • Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance
  • Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance
  • Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance
  • Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance

Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number HT-5030
Product Details
Product Name:
Mini Crawler Dumper
Engine:
Loncin 196CC
Emission:
Euro5
Machine Weight:
281kg
Cooling Mode:
Air-cooled
Warranty:
1 Year
High Light:

Mini Crawler Dumper 281kg

,

Euro5 Emission Mini Crawler Dumper

,

small crawler dumper 281kg

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

3. 5km/h New Mini Crawler Dumper Transporter Rubber Track Dumper 500kg



Description of HT-5030 Mini Crawler Dumper:



The HT5030 mini dumper adopts the brand single-cylinder air-cooled diesel power system, with high engine power, low fuel consumption, easy operation and maintenance, and low cost of use.



Features of  HT-5030 Mini Crawler Dumper:



1. High traction, special high gear climbing tracks, good climbing and gripping performance, good anti-skid effect, strong transport capacity.

2. stable center of gravity, small turning radius, flexible, especially for narrow sites, reducing the cost of road construction.



Technical parameters of HT-5030 Mini Crawler Dumper  :

Mini Dumper Model HT-5030
Engine Loncin 196CC
Cooling mode Air-cooled
Fuel Gasoline
Emission Euro5
Transmission Forward:6/Rear:2
Speed type High-Low
Loading capacity 300kg
Box length 1045mm
Box width 630mm
Box depth 320mm
Box type Split type
Track width 180mm
Flow of pump
Mini Dumper weight 281kg
Overall dimension(L*W*H) 1980*820*1060
Start mode Manual
Driving type Mechanical
Steering mode Manual
Unload mode Manual
Loading quantity 12sets/20GP
24sets/40HQ



It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

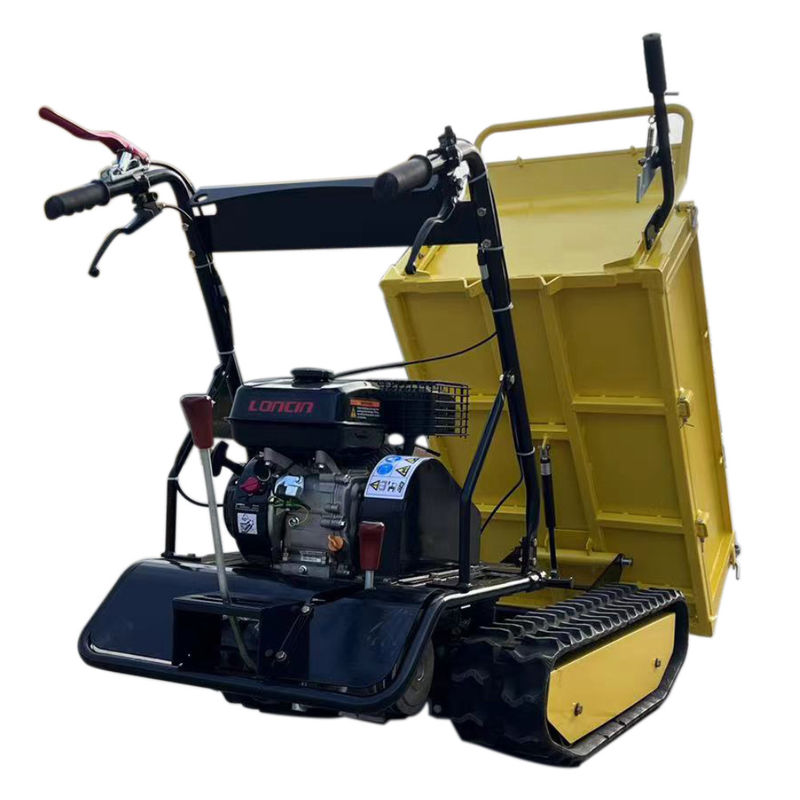

Images of HT-5030 Mini Crawler Dumper:

Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance 0Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance 1Euro5 Emission Mini Crawler Dumper Truck 281kg High Performance 2
