Foldable Platform Mini Dumper Crawler 860kg For Paddy Fields
  • Foldable Platform Mini Dumper Crawler 860kg For Paddy Fields
  • Foldable Platform Mini Dumper Crawler 860kg For Paddy Fields

Foldable Platform Mini Dumper Crawler 860kg For Paddy Fields

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Product Details
Product Name:
Mini Crawler Dumper
Engine:
BTIGGS STRATTON XR950
Max. Operating Mass:
860 Kg
Overall (LxWxH):
2112x832x1344 Mm
Hydraulic Flow:
28.8 L
Warranty:
1 Year
High Light:

Foldable Platform Mini Dumper Crawler

,

Mini Dumper Crawler 860kg

,

Paddy Fields crawler mini dumper

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

Epa Mini Crawler Dumper Transporter Rubber Track Dumper



Description of HT500 Mini Crawler Dumper:

① Seperate hydraulic circuit for equipment traction
② Forward and reverse drive controls by handle
③ Customized transition gear box for easy engin startup with low ambient temperature


Features of  Mini Crawler Dumper:

④ Option with reverse startup and electric
⑤ Foldable platform for flexiable maneuver
⑥ Detachable hopper protection



Technical parameters of Mini Crawler Dumper  :



Model

MASSES
Max. operating mass
860kg
Transport mass
360kg
DIMENSIONS
Overall (L*W*H)
2112*832*1344mm
Transport dimensions(L*W*H)
1480*832*1344mm
HYDRAULIC
Pump
Tandem gear pump (4cc*2) 3600rpm
Motor
Disc distribution cycloid motor (*2)
Working pressure
Max. 180 bar
Hydraulic flow
28.8L
Motor torque
645Nm each at 180 bar
TRACTION
Driving
Hydraulic
Steering
Fully hydraulic / control valve
Forward
3.2km/h
Reverse
3.2km/h
Grade ability
15 degrees
Ground clearance
71mm
ENGINE
Model
BTIGGS STRATTON XR950
Emission accordance
EPA/EURO 5
Rated power
6.5HP/3600rpm
Displacement
208CC
Cylinder x stroke
68.3x55.9mm
Fuel tank volume
3.1L
Oil volume
0.6L
Net weight
16kg
Startup
Reversing & E-starter
Hopper volume
270L



Application of Mini Crawler Dumper:



It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

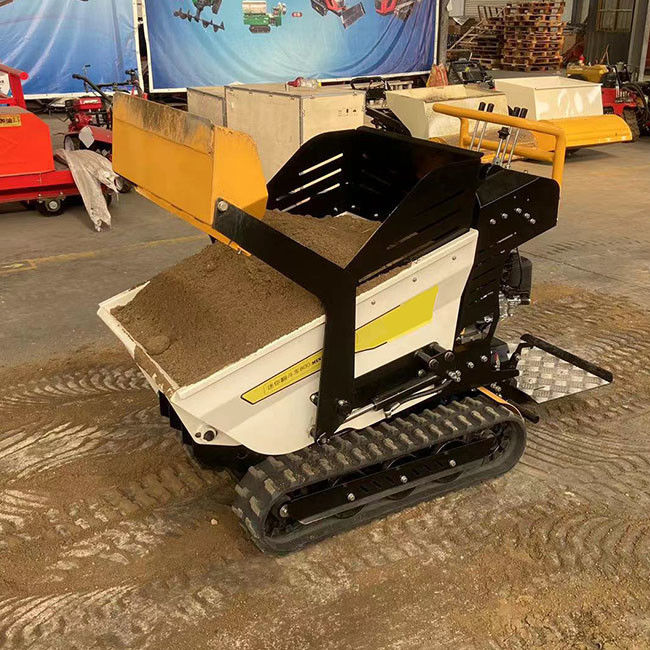

Images of Mini Crawler Dumper:



Foldable Platform Mini Dumper Crawler 860kg For Paddy Fields 0
