| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |

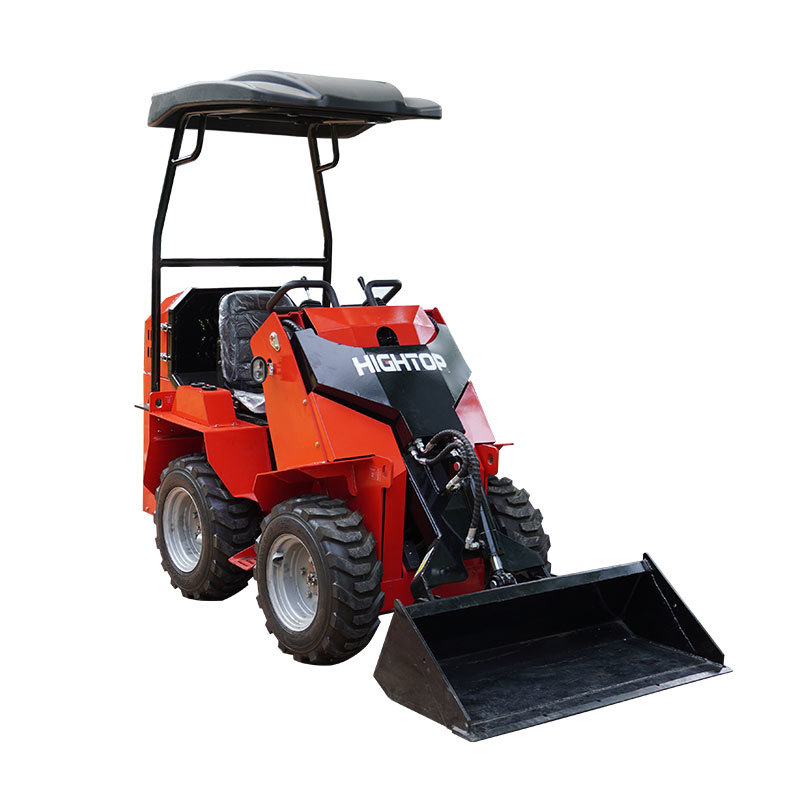

| Model Number | HTSL390 |
1.Operation panel
The hydraulic controllever hascompletefunctions,sensitive control arms,and is easy tooperate.
2.Hydraulic system
Equipped with a powerful hydraulic system, providing precisecontrol and enhanced capabilities, maximizing productivity.
3. Heavy-duty-bucket
Strong load-bearing capacity makes loading and unloading easy and effortless.
4. Wear-resistant Tyre
Anti-silp wear-resistant steerig fliexable Strong grip
| Max working height | 2398mm |
| Max pin height | 1815 mm |
| Max Dumping height | 1430mm |
| Max Dumping distance | 366mm |
| Max Dumping Angle | 23 |
| Total height | 2020mm |
| Ground clearance | 185 mm |
| Wheel base | 815 |
| Overall length without bucket | 2030mm |
| Total width | 1050mm |
| Bucket width | 1050mm |
| Total length with bucket | 2481mm |
| Engine | RATO R420 |
| Rated Power (KW) | 10Kw/3600rpm |
| Rotating speed (rpm) | 3600 |
| Noise (Db) | ≤95 |
| Hydraulic System | |
| Pressure (Mpa) | 0-17 |
| Flow rate | 0-18L |
| Operating Load | 250KG |
| Bucket Capacity | 0.13m³ |
| Max Lifting Force | 200 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 850kg |
| Oil | |
| Fuel tank | 6.5L |
| Engine oil | 1.7L |
| Hydraulic tank | 23L |
