HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load
  • HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load
  • HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load
  • HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load
  • HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load
HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load

HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load

Place of Origin China
Brand Name Hightop
Certification CE，EPA，ISO，TUV
Model Number HTS120
Product Details
Product Name:
Skid Steer Loader
Model:
HTS120
Operating Weight（kg）:
4000
Rated Load（kg）:
1500
Bucket Capacity（m³）:
0.55
Highlight:

compact mini skid steer loader

,

spacious mini skid steer

,

adaptable mini skid steer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union,MoneyGram,T/T,D/A,D/P,L/C
Supply Ability
100 set per month
Product Description
HTS120 Mini Skid Steer Loader - Good Adaptability with Spacious Operating Space
Product Overview
The HTS120 is a versatile skid steer loader engineered for diverse work environments. Combining stable power with flexible operation, it delivers efficient performance for various construction and material handling tasks.
Key Performance Features
  • Powerful Capacity: 4,000 kg operating weight with 1,500 kg rated load capacity
  • Efficient Bucket: 0.55 m³ capacity for medium to heavy-duty material handling
  • High Mobility: 12/18 km/h travel speed for quick site transitions
  • Strong Traction: Maximum traction force exceeding 32 kN
  • Quick Operation: Boom lifting force ≥22 kN with 7-second lifting time
Engine Specifications
Powered by a Weichai WP4.1 engine with 103 kW/rpm at 2,300 rpm and 4.088 L displacement. Complies with National III emission standards for environmentally conscious operation.
Dimensions & Maneuverability
  • Operating Height: 4,290 mm maximum with 3,278 mm bucket pin height
  • Cab Design: 2,160 mm height provides excellent visibility
  • Compact Size: 3,023 mm length without bucket (3,795 mm with bucket)
  • Superior Maneuverability: 1,278 mm turning radius without bucket
  • Precision Unloading: 2,500 mm unloading height with 40° maximum angle
Technical Specifications
Category Parameter Value
Performance Operating weight (kg) 4000
Rated load (kg) 1500
Bucket capacity (m³) 0.55
Max Speed (km/h) 12/28
Max traction (kN) >32
Max breakout (kN) ≥22
Lifting time of boom (s) 7
Engine Manufacturer Weichai
Model WP4.1
Rated power (kW/rpm) 103/2300
Engine displacement (L) 4.088
Emission Standard National Highway 3
Applications
Ideal for municipal construction, mining operations, and agricultural production, the HTS120 delivers reliable performance across diverse working conditions.
Product Images

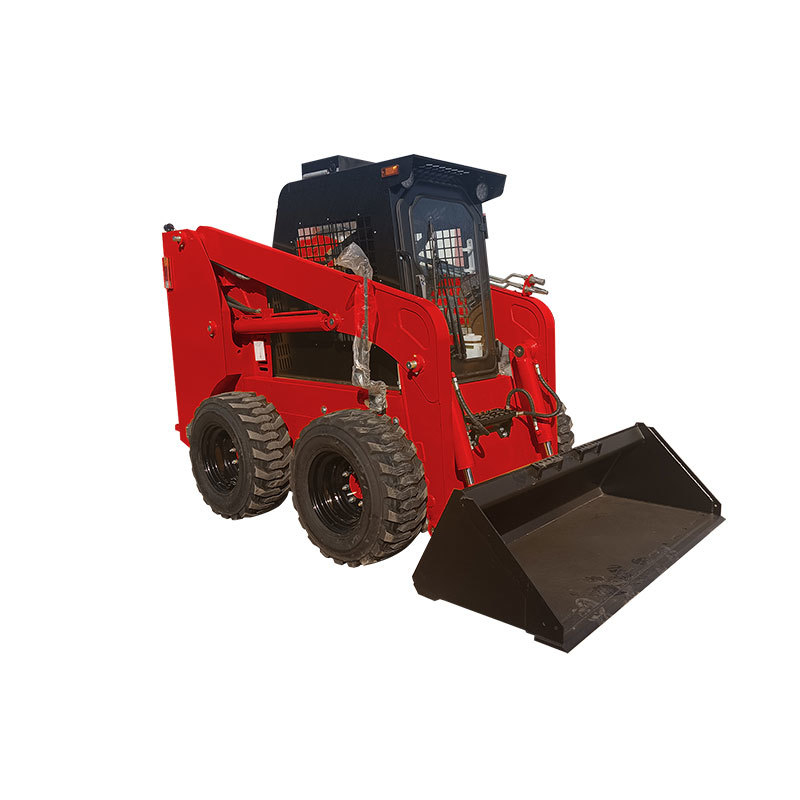

HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load 0 HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load 1 HTS120 Skid Steer Loader 4000kg Operating Weight 1500kg Rated Load 2
