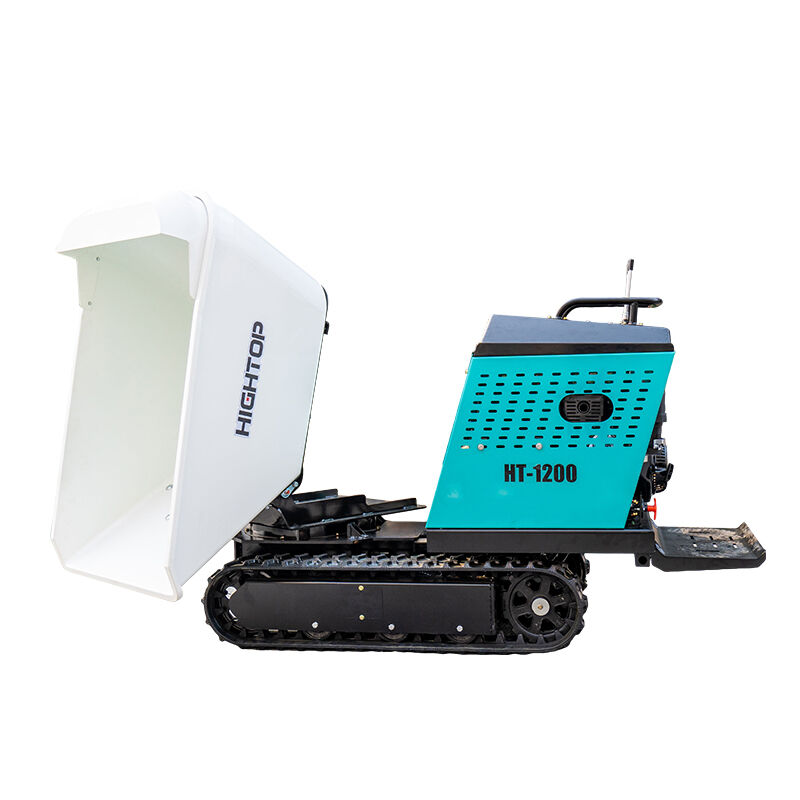

HT1200 Crawler Rotation Dump Truck with 13.5HP Engine 180° Rotation

Name: HT1200 Crawler Rotation Dump Truck with 13.5HP Engine 180° Rotation
Brand: Shandong Hightop Group
SKU: HT1200
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT1200

Product Details

Product Name:

HT1200 Crawler Rotation Dump Truck

Net Weight:

700KG

Machine Model:

HT-1200

Power Model:

Ducar

Power Type:

Single Cylinder, EPA, 4-Stroke, Air-Cooled

Total Displacement (ML):

420CC

Rated Power (KW/RPM):

13.5HP/3600RPM

Climbing Capacity:

25°

Highlight:

13.5HP Engine Mini Crawler Dumper

1200KG Load Capacity Crawler Rotation Dump Truck

180° Rotation Tracked Dump Truck

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden box packaging

Delivery Time

8-14 week days

Payment Terms

L/C,D/P,D/A,T/T,Western Union

Supply Ability

100 set per month

Product Description

HT1200 Crawler Rotation Dump Truck

Product Overview

The HT1200 Crawler Rotation Dump Truck is engineered for heavy-duty material handling operations, combining powerful performance with exceptional maneuverability across challenging terrains.

Key Features

Core Power: 13.5HP powerful engine effortlessly handles 1200KG loads with a robust 420CC Da Jiang engine specifically engineered for heavy-duty material handling.
Flexible Loading/Unloading: Hydraulic dump system with 180° left/right rotation capability. Tilt and rotation can be controlled independently or synchronously for multi-angle dumping efficiency. Optional mixing tank available for multi-functional operations.
All-Terrain Adaptability: Engineered rubber tracks deliver superior traction and exceptional durability. Stable chassis design provides robust 25° climbing capability, conquering muddy, rugged, and complex terrain with ease.
Intelligent Control: User-friendly centralized control panel with clearly labeled buttons and logical layout enables quick mastery and precise operation, reducing learning curves and operator fatigue.
Reliable Durability: Robust structural integrity with clearly marked wear parts like hydraulic filters and air filters ensures easy maintenance, guaranteeing long-term stable operation and high return on investment.

Technical Specifications

Parameter	Specification
Machine Model	HT-1200
Power Model	Ducar
Power Type	Single Cylinder, EPA, 4-Stroke, Air-Cooled
Total Displacement (ML)	420CC
Rated Power (KW/RPM)	13.5HP/3600RPM
Fuel Type	92# Gasoline
Fuel Tank Capacity	6L
Net Weight	700KG
Maximum Load Capacity	1200KG
Machine Dimensions (Excluding Footrest)	22108901350mm
Machine Dimensions (Including Footrest)	23958901350mm
Cargo Box Dimensions	1300800600mm
Chassis Width	890mm
Cargo Box Capacity	594dm³
Tipping Method	Hydraulic Tipping
Travel Speed	5.2KM/H
Climbing Capacity	25°
Rotation Angle	R180° Left/Right
Crawler Model	1807241
